Nextra

Next Generation Transportation

A rare earth permanent magnetic synchronous motor combined with VVVF drive gives Nextra a breakthrough advantage. Nextra also gives a power consumption advantage by 60% by reducing startup current, giving higher efficiency and greater mechanical efficiency.

Nextra’s gearless motor is a wonder of modern technology with only one moving part and the bearings completely sealed. It generates higher lift travelling speeds at much lower motor speed. All this put together, gives a trouble-free, smooth operation for decades to come.

Get to know special advantages of Nextra

Features

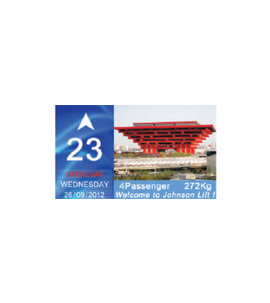

TFT Color Display

Easily customizable for notices & advertisements

VVVF Controller

The Variable Voltage Variable Frequency control gives 50% savings

IR Screen Sensor

Curtain of 212 IR beams to prevent accidental closing of doors

Floor Annunciator

Recorded voice announcing arrival of lifts on floors

Brochure

Johnson Nextra

At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Nextra, download brochure.
DOWNLOAD

Send download link to:

What’s inside in it?

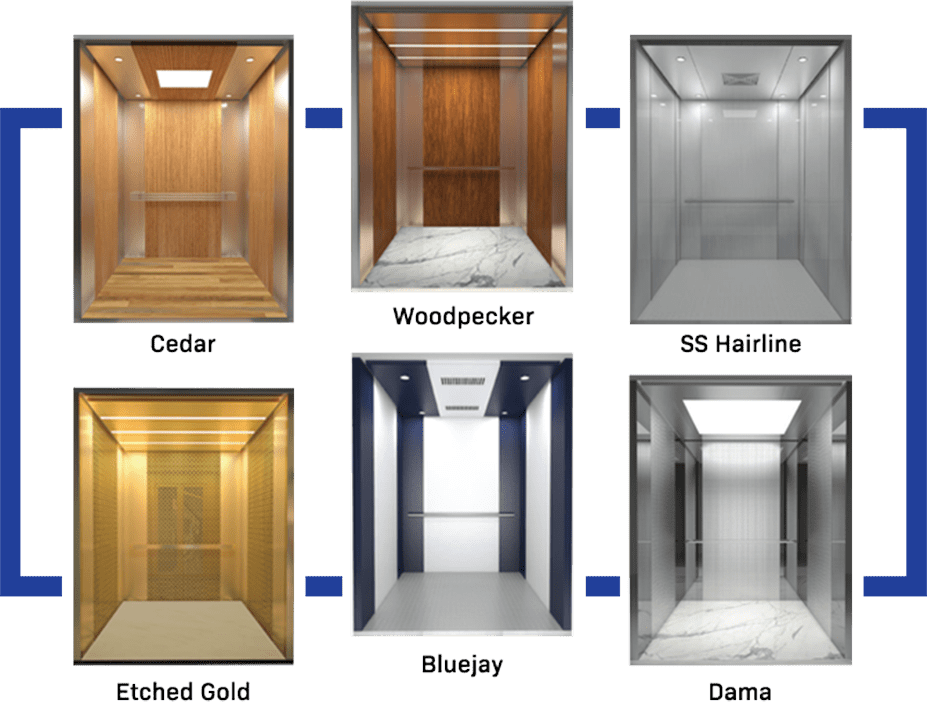

Interiors

Car body panels in corrosion-resistant Decorative Laminated Steel Sheet (DLSS); In a combination of two colours. False ceiling in matching colours, crafted from DLSS, with power saving LED lights and cross flowfan. Flooring is hard wearing vinyl in a matching shade. The car operating panel is in elegant Slimline SS finish with braille buttons. A stainless steel handrail is provided at the rear.

Know whats inside
Interiors – Exteriors

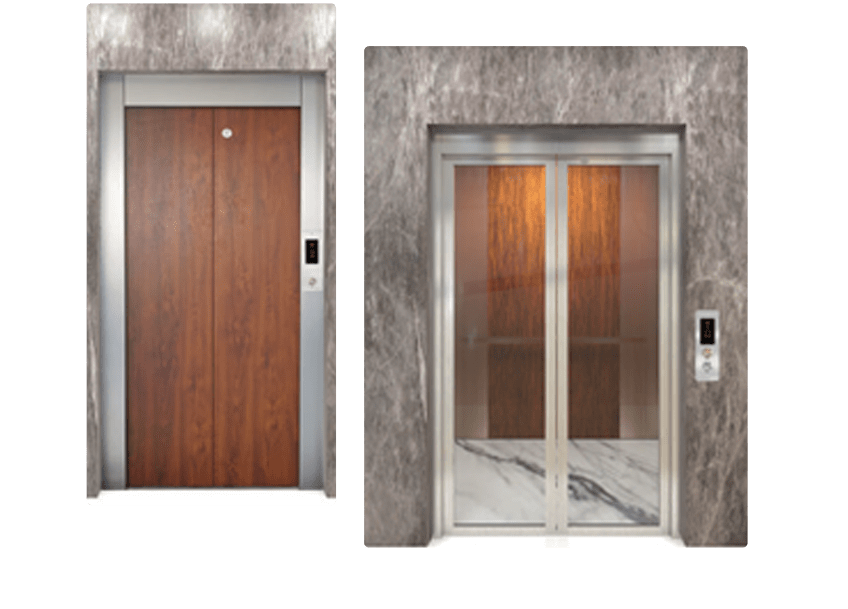

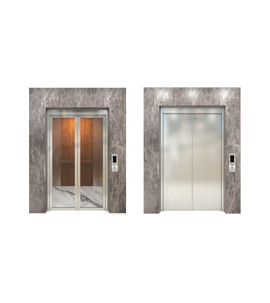

Narrow Jamb Door

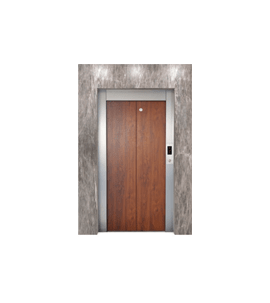

Wide Jamb Door

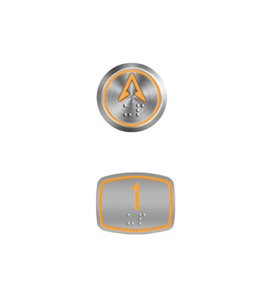

JBLT01 TACTILE (Optional)

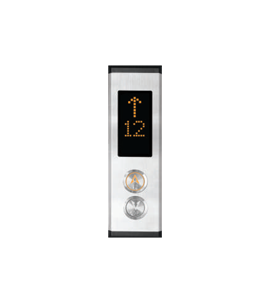

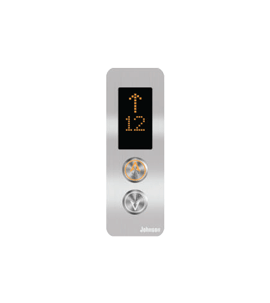

JLLP 01

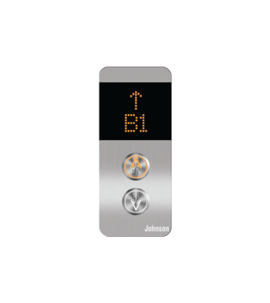

JLLP 03 (Optional)

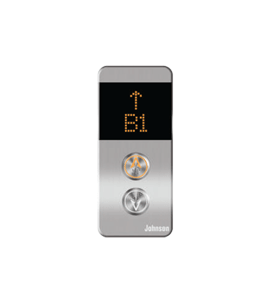

JLLP 04 (Optional)

JLLP 01

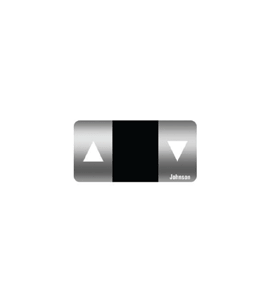

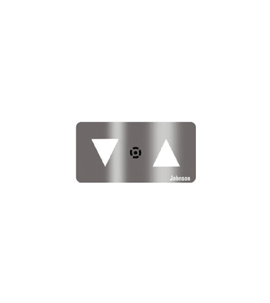

JLH01

JHL02 (optional)

JLDP01

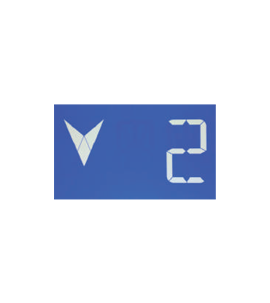

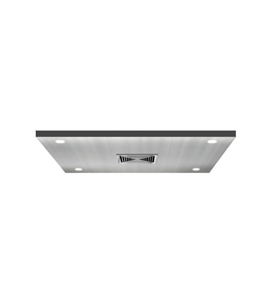

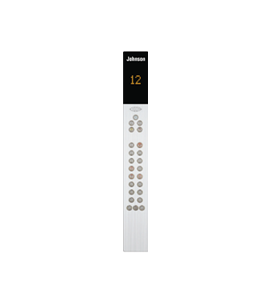

JLDP03 (Optional)

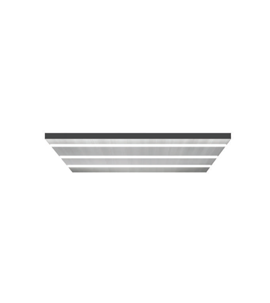

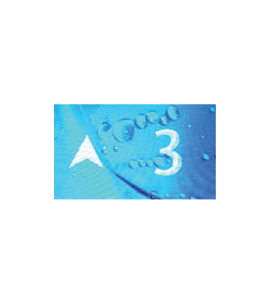

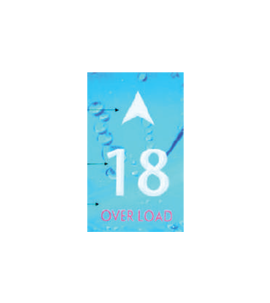

JLDP04 (Optional)

JLDP04 (Optional)

JLDP06 (Optional)

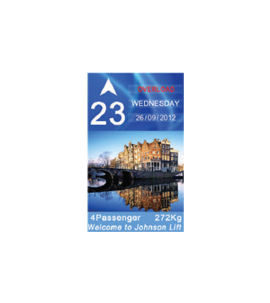

JLDP05 (Optional)

JLCP 02

JLCP 03 (Optional)

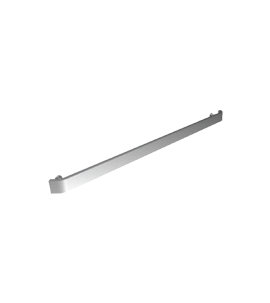

JLHR04 – FLAT HANDRAIL (Optional)

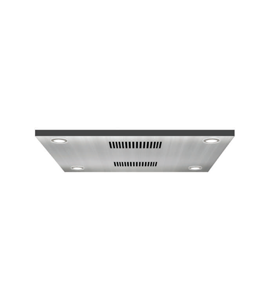

JLFC01 (Optional)

JLFC02 (Optional)

JLFC03

JLFC04 (Optional)

JLFC05

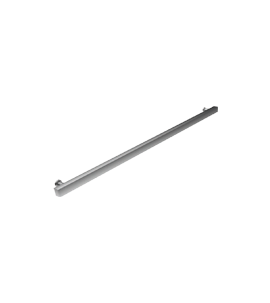

JLHR02 – SQ. HANDRAIL

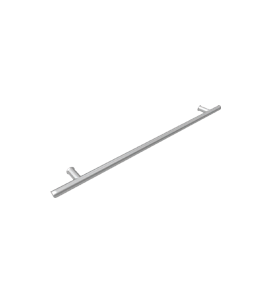

JLHR01 – ROUND HANDRAIL

JLHR02 – SQ. HANDRAIL

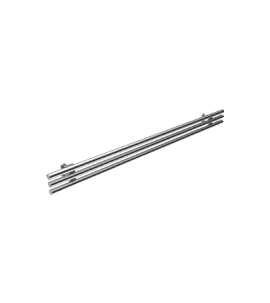

JLHR05 – TRI ROUND HANDRAIL (Optional)

Measurements and Dimensions
Specifications
LOAD Speed in m/s CAR INSIDE LIFT WELL ENTRANCE
PERSONS KGS (Motor Rating - kw) A B C D E
6 408 1.25 (3.1) & 1.75 (4.3) 1100 1000 1550 1600 700 (min)
1200 900 1750 1500 800
8 544 1.25 (4.1) & 1.75 (5.8) 1300 1100 1750 1700 800
1400 1000 1800 1600 800
10 680 1.25 (5.2) & 1.75 (7.3) 1300 1350 1750 1950 800
1400 1250 1800 1850 800
13 884 1.25 (6.7) & 1.75 (9.4) 2000 1100 2450 1700 900
15 1020 1.25 (8.2) & 1.75 (11.5) 2000 1200 2450 1800 1000
16 1088 1.25 (8.2) & 1.75 (11.5) 2000 1300 2450 1900 1000
20 1360 1.25 (13.2) & 1.75 (15.5) 2000 1500 2450 2100 1000
24 1632 1.25 (18.4) & 1.75 (18.4) 2000 1750 2500 2350 1000
