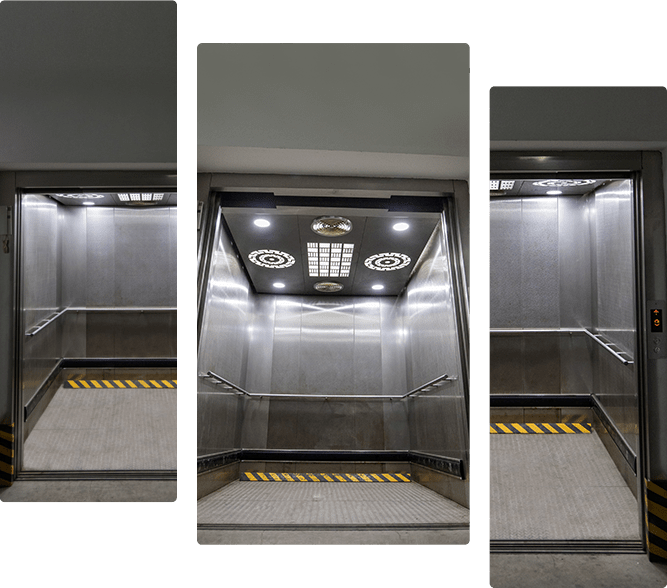

Goods Lift

For factories, warehouses and similar buildings

Greater accuracy of leveling, adequate speeds and capacity, are advantages of choosing a Goods lift with Johnson. Johnson Goods Lifts are for easy transportation of bulky equipment’s. The location of lifts in factories, warehouses and similar buildings should be planned to suit the progressive movement of goods throughout the buildings, having regard to the nature of position of the loading platforms, railway sidings, etc. For More Details Contact Us.

Get to know special advantages of Goods lift

Features

Performance

Owing to their ability to withstand load, optimum performance and negligible maintenance

Operations

Operationally efficient for loading and unloading of greater capacity goods

Sturdy construction

Excellent resistance to corrosion & wearing and hassle free maintenance

At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Goods Lifts.

CENTRE OPENING DOOR LIFT

CAPACITY LOADS IN KGS MODEL SPEED IN MPS CAR INSIDE CABIN CLEAR HEIGHT LIFT WELL ENTRANCE PIT DEPTH HEAD-ROOM HEIGHT M/C ROOM HEIGHT M/C ROOM EXTENSION NO. OF STOPS TRAVEL HEIGHT IN METER
A B H C D E Front Extension Side Extension
500 MR NEXTRA FREIGHT 1 1100 1200 2350(WITHOUT FALSE CEILING) 1950 1850 900(2P/COPOD) 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2150 1650 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
750 MR NEXTRA FREIGHT 1 1300 1500 2350(WITHOUT FALSE CEILING) 2200 2200 1000(2P/COPOD) 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2450 1900 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
1000 MR NEXTRA FREIGHT 1 1400 1800 2350(WITHOUT FALSE CEILING) 2550 2200 1200(2P/COPOD) 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2600 2200 1100(2P/COPOD) 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
1500 MR NEXTRA FREIGHT 1 1700 2000 2350(WITHOUT FALSE CEILING) 2750 2500 1500(4P/COPOD) 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2650 2550 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
2000 MR NEXTRA FREIGHT 1 1700 2500 2350(WITHOUT FALSE CEILING) 2750 3000 1500(4P/COPOD) 1800 4800 2500 2000 1000 16 45
MRL SUKRANTI FREIGHT 2700 5000 -NA- -NA- -NA- 16 45
2500 MR NEXTRA FREIGHT 1 2000 2500 2350(WITHOUT FALSE CEILING) 3100 3000 1800(4P/COPOD) 1800 4800 2500 2000 1000 16 45
MRL SUKRANTI FREIGHT 3200 3050 5200 -NA- -NA- -NA- 16 45

SIDE OPENING DOOR LIFT

CAPACITY LOADS IN KGS MODEL SPEED IN MPS CAR INSIDE CABIN CLEAR HEIGHT LIFT WELL ENTRANCE PIT DEPTH HEAD ROOM HEIGHT M/C ROOM HEIGHT M/C ROOM EXTENSION NO. OF STOPS TRAVEL HEIGHT IN METER
A B H C D E Front Extension Side Extension
500 MR NEXTRA FREIGHT 1 1100 1200 2350(WITHOUT FALSE CEILING) 1950 1930 900 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 1950 1700 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
750 MR NEXTRA FREIGHT 1 1300 1500 2350(WITHOUT FALSE CEILING) 2200 2280 1000 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2250 2000 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
1000 MR NEXTRA FREIGHT 1 1400 1800 2350(WITHOUT FALSE CEILING) 2550 2280 1200 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2350 2300 1100 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
1500 MR NEXTRA FREIGHT 1 1700 2000 2350(WITHOUT FALSE CEILING) 2750 2500 1200 1600 4500 2500 2000 1000 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
MRL SUKRANTI FREIGHT 1 2550 2550 1600 4500 -NA- -NA- -NA- 16 45
1.25 19 56
1.5 1800 4800 23 67
1.75 27 78
2000 MR NEXTRA FREIGHT 1 1700 2500 2350(WITHOUT FALSE CEILING) 2750 3000 1200 1800 4800 2500 2000 1000 16 45
MRL SUKRANTI FREIGHT 2700 3000 5000 -NA- -NA- -NA- 16 45
2500 MR NEXTRA FREIGHT 1 2000 2500 2350(WITHOUT FALSE CEILING) 3100 3000 1200 1800 4800 2500 2000 1000 16 45
MRL SUKRANTI FREIGHT 3150 3050 5200 -NA- -NA- -NA- 16 45
