Nextra Express

Join the Gearless Revolution

Next Generation Vertical transportation reducing the power consumption by 60%. The rare earth permanent magnet material of the gearless motor increases efficiency around by 80 % by reducing start-up current, saving electricity and generating less heat and giving greater mechanical efficiency. Nextra Express is a green lift for greener buildings – advantage of energy efficiency as well as the gearless motor requires no lubrication and zero maintenance. No oil and hence no more pollution. Manufactured at four world class factories in India, Nextra express is built with cutting edge equipment to uncompromised quality processes. Experience and expertise manpower with the great brains in R&D ensures that with Nextra express, you get the best in the world. For More Details Contact Us

Get to know special advantages of Nextra Express

Features

TFT Color Display

Full Length Fixture with TFT display

VVVF Controller

The Variable Voltage Variable Frequency control gives 50% savings

IR Screen Sensor

Curtain of 212 IR beams to prevent accidental closing of doors

Floor Annunciator

Recorded voice announcing arrival of lifts on floors

Brochure

Johnson Nextra Express

At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Nextra Express, download brochure.
DOWNLOAD

Send download link to:

What’s inside in it?

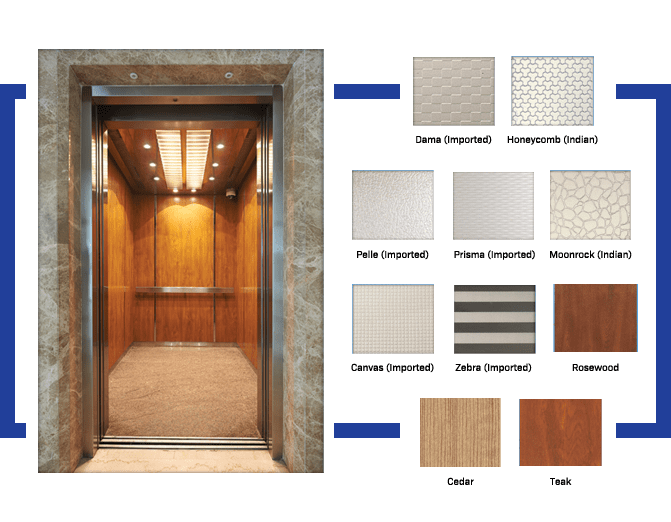

Interiors

Wood finish interior with ample collections and choices in stainless steel and pre-coated steel.

Variable options of false ceilings available crafted from pre-coated steel/SS. Power saving options are also opted by LED bulbs. Fan diffusers are made available in various colors to complement the interiors of the lift.

Know whats inside

Interiors – Exteriors

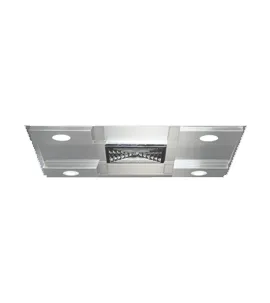

False Ceiling – Odyssey

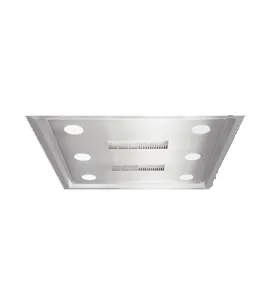

False Ceiling – Solaris

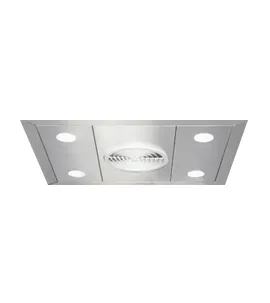

False Ceiling – Stellar

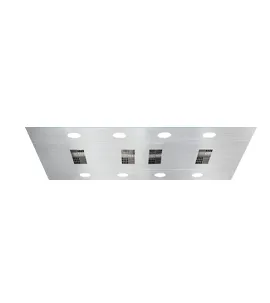

False Ceiling – Matrix

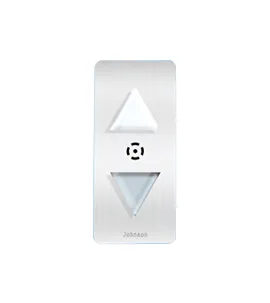

Arrival Gong

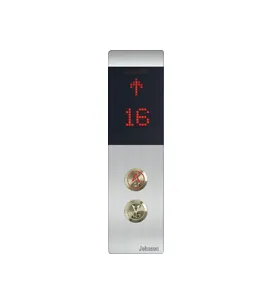

Surface Mounted Operating Panel

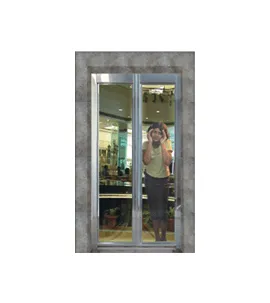

Glass Doors

Measurements and Dimensions

Specifications
LOAD SPEED CAR INSIDE LIFT WELL ENTRANCE
Persons KGS in.m/s A B C D E
10 680 2.5 1300 1350 1900 2150 800
1400 1250 2000 2050 800
13 884 2.5 2000 1100 2600 1900 900
15 1020 2.5 2000 1200 2600 2000 1000
16 1088 2.5 2000 1300 2600 2100 1000
20 1360 2.5 2000 1550 2600 2350 1000
24 1632 2.5 2000 1800 2600 2600 1000
26 1768 2.5 2000 1900 2600 2700 1000
LOAD SPEED CAR INSIDE LIFT WELL ENTRANCE
Persons KGS in.m/s A B C D E
10 680 2.5 1300 1350 1900 2250 800
1400 1250 2000 2150 800
13 884 2.5 2000 1100 2600 2000 900
1000
15 1020 2.5 2000 1200 2600 2100 1000
16 1088 2.5 2000 1300 2600 2200 1000
20 1360 2.5 2000 1550 2600 2450 1000
24 1632 2.5 2000 1800 2600 2700 1000
26 1768 2.5 2000 1900 2600 2800 1000
