Mini Sukranti – Medium Rise

Freedom of Expression

Mini Sukranti is the next generation in vertical transportation. The heart of it is a rare earth permanent magnet synchronous motor. Mini Sukranti works at saving energy to greater extent. It reduces the start-up current, saving electricity – the busier the lift, the more the saving as a result of high efficiency. Mini Sukranti is a green lift for greener buildings. The gearless motor requires no lubrication and zero maintenance. No oil means no pollution.

Get to know special advantages of Mini Sukranti

Features

Save Energy

Reduces your power consumption by 60% and increases efficiency by 80%

Smoother Ride

Speed control works with closed loop feedback from encoder ensuring smooth ride.

Save Space

Designed to modular specifications that saves valuable space in liftwell.

Interiors

Car body, car door in corrosion-resistant, pre-coated steel.

Brochure

Mini Sukranti - Medium Rise

At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Mini Sukranti, download brochure.
DOWNLOAD

Send download link to:

What’s inside in it?

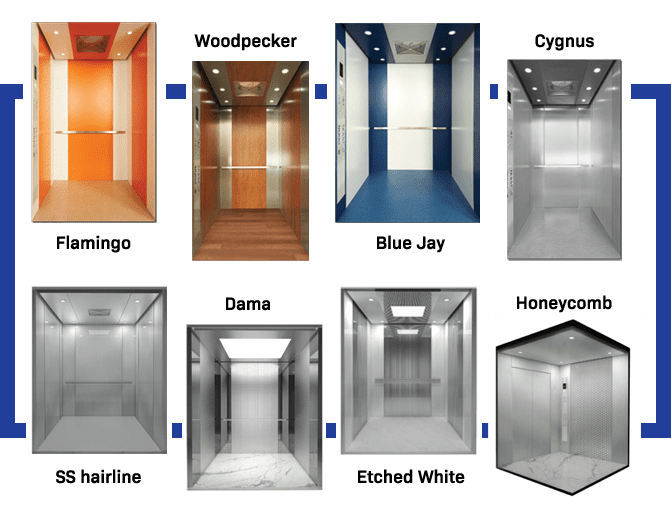

Interiors

Flamingo
Woodpecker
Blue Jay
Cygnus
SS hairline
Etched White
Dama
Honeycomb

Know whats inside

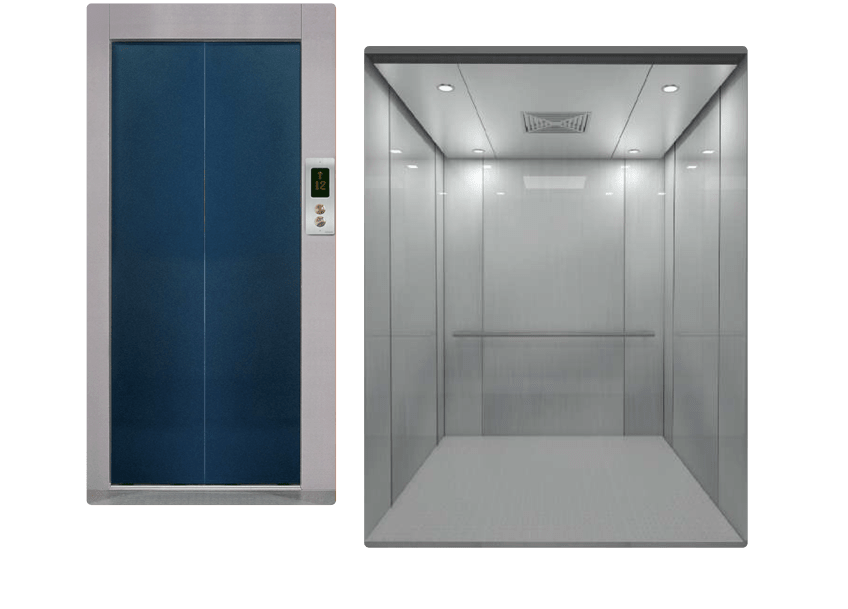

Interiors – Exteriors

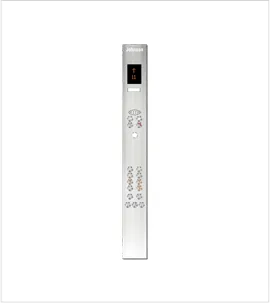

JLCP 03 (Optional)

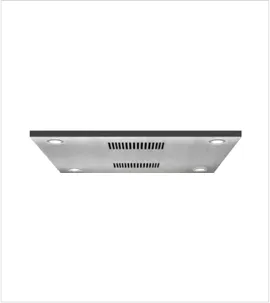

JLFC03

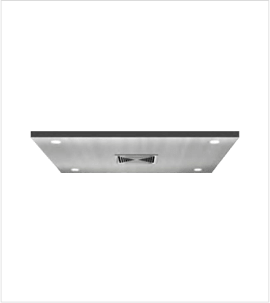

JLFC05

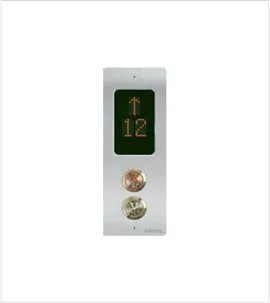

Flush Mount LOP

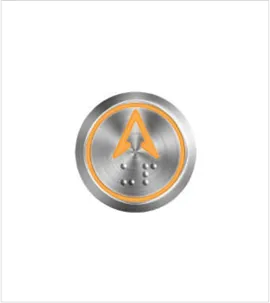

JLBT01

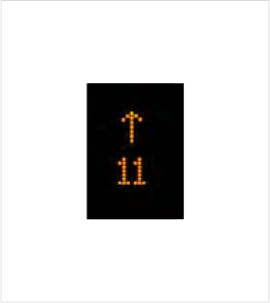

JLDP01

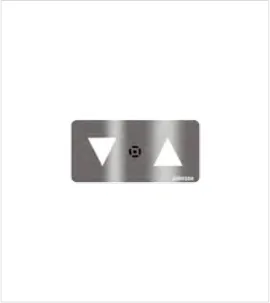

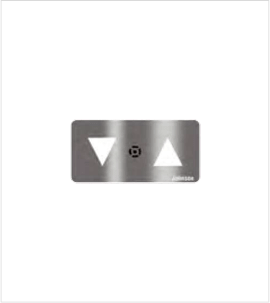

JLHL01

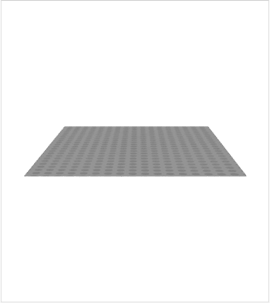

JLFL02 (Optional)

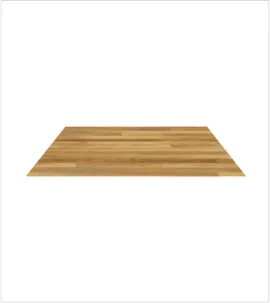

JLFL03 (Optional)

Measurements and Dimensions

Specifications
LOAD CAR INSIDE LIFT WELL ENTRANCE
PERSONS KGS A B C D E
6 408 1000 1100 1650 1475 700
8 544 1050 1350 1675 1600 700
1000 1400 1800 1800 800
1300 1100 1885 1500 800
10 680 1200 1450 1900 1775 800
1000 1700 1800 1925 800
13 884 1100 2000 1950 2300 900
1500 1450 2175 1800 900
15 1020 1100 2150 1950 2450 900
1500 1550 2200 1875 900
LOAD CAR INSIDE LIFT WELL ENTRANCE
PERSONS KGS A B C D E
6 408 900 1100 1500 1475 700
1000 1100 1575 1475 800
8 544 1050 1350 1650 1600 800
1300 1100 1885 1500 800
10 680 1100 1600 1775 1925 800
1200 1450 1875 1775 800
13 884 1100 2000 1775 2300 900
1500 1450 2175 1800 900
15 1020 1100 2150 1775 2450 900
1550 1550 2200 1875 1000
CAPACITY PIT DEPTH HEAD ROOM SPEED TRAVEL CABIN CLEAR HEIGHT
6P to 10P 1600 4000 1.25mps 45 mtrs 2200
13P to 15P 1700 4200
