Mini Sukranti – Low Rise

Freedom of Expression

Mini Sukranti Low Rise is the next generation lifts. MSLR requires no machine and controller fitted in the lift shaft. MSLR travels at a maximum travel speed of 0.66 mps up to 18 meters of travel height and a maximum load of 544 kg. Mini Sukranti has an in-built automatic rescue device – ARD that takes the lifts to the nearest level in the case of a power interruption. And also, when the lift is overloaded, indicator light turns on and the alarm beeps. For More Details Contact Us.

Get to know special advantages of Mini Sukranti

Features

Save Energy

Reduces your power consumption by 60% and increases efficiency by 80%

VVVF Controller

Ensures energy savings and a super-comfortable ride quality

IR Screen Sensor

Curtain of 212 infra-red beams prevents accidental closing of door

Save your health

Eyeris – contactless, virtual lift operating all – an innovation for safety

Brochure

Mini Sukranti – Low Rise

At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Mini Sukranti – Low Rise, download brochure.
DOWNLOAD

Send download link to:

What’s inside in it?

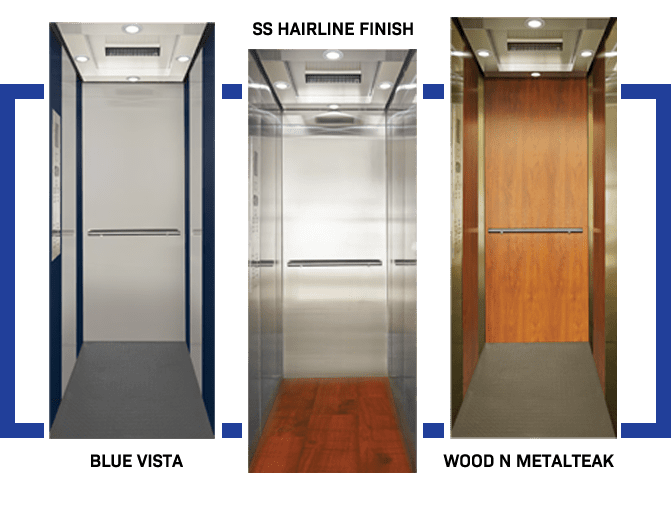

Interiors

Blue Vista
SS Hairline Finish
Wood N Metal – Teak

Interiors – Exteriors

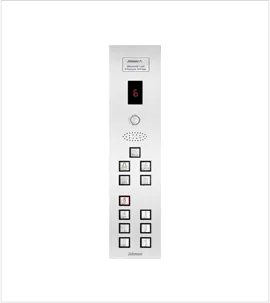

JLCP 01

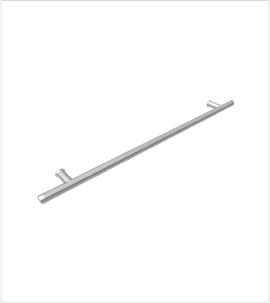

JLHR01 – ROUND HANDRAIL

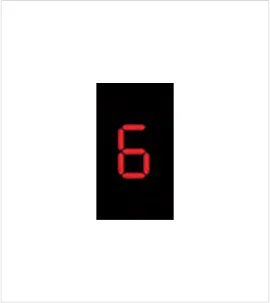

JLDP02

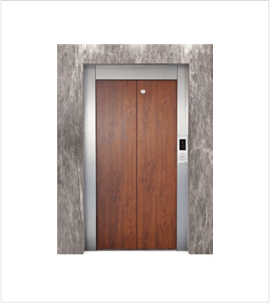

WIDE JAMB DOOR

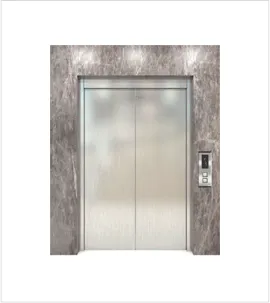

NARROW JAMB DOOR

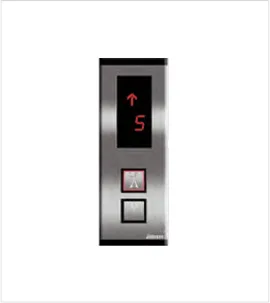

JLLP 01

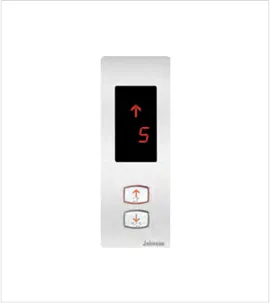

JLLP 02

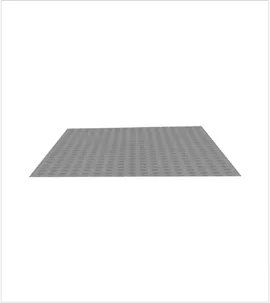

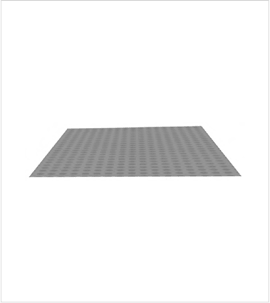

JLFL03 (Optional)

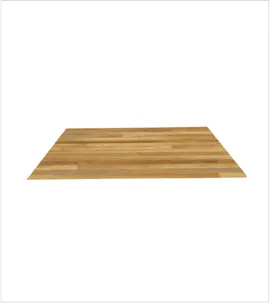

JLFL01

Measurements and Dimensions

Specifications
LOAD CAR INSIDE LIFT WELL SIDE OPENING LIFT WELL CENTRE-OPENING ENTRANCE
PERSONS KGS A B A B A B E
4 272 800 950 1300 1250 1550 1250 700
5 340 950 1000 1450 1250 1550 1250 700
6 408 1000 1100 1500 1350 1560 1350 700
8 544 1050 1350 1550 1650 1760 1600 800
1100 1300 1600 1600 1760 1550 800
Capacity Pit depth Head Room Speed Travel Cabin dear height
4P To 8P 1350 4000 0.66 18 mtrs 2100
