Enduronic
Endurance & Elegance Optimized
To add strength and elegance, all Enduronic lifts come with Decorated Laminated Steel Sheet (DLSS) door frames. Stainless Steel buttons with sophisticated design – Braille buttons flush with back plate. High end LED Illumination with high tamper resistant.
False ceiling also crafted from corrosion resistant DLSS. Power saving green lifts with LED bud, fan diffuses and energy efficient interiors and exteriors. On the other hand, customers can also opt for silent cross-flow fans.

Get to know special advantages of Enduronic
Features
VVVF Controller
The Variable Voltage Variable Frequency control gives 50% savingsVVVF Door Controller
Silken smooth door movement with slow nudging featureIR Screen Sensor
Curtain of 212 IR beams to prevent accidental closing of doorsStainless Steel Buttons
Sophisticated designs and high tamper resistantBrochure
Johnson Enduronic
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Enduronic, download brochure.
Send download link to:
What’s inside in it?

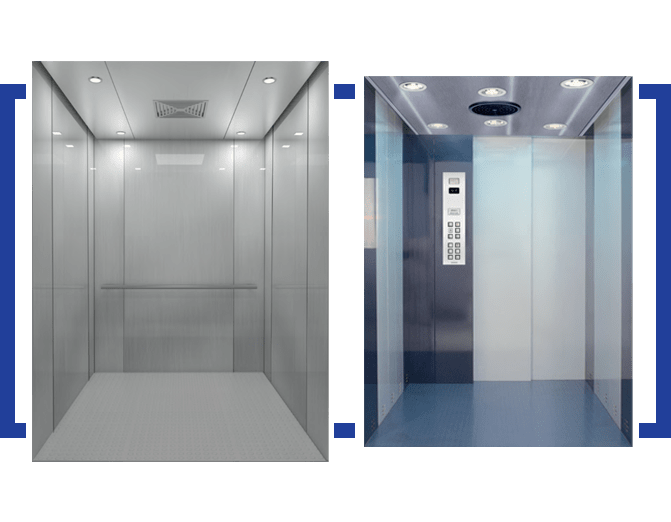

Interiors
Stainless Steel interiors with Hairline finish
Beaumont interior in corrosion-resistant, DLSS with side opening telescopic door

Know whats inside
Interiors – Exteriors

JLHL01

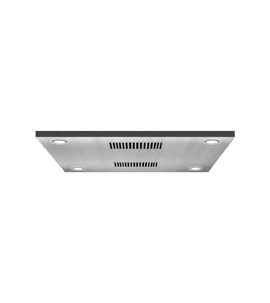

JLFC05

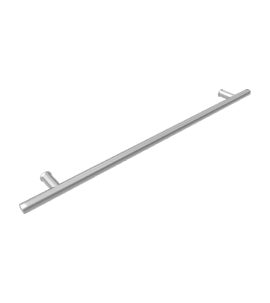

JLHR01 – ROUND HANDRAIL

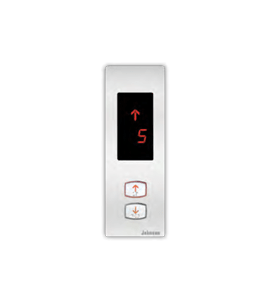

JLLP 01

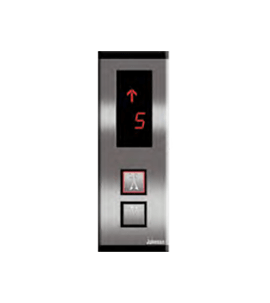

JLLP 02

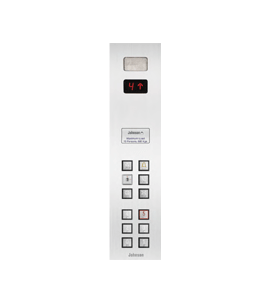

Car Operating Panel
Measurements and Dimensions
Specifications
LOAD | SPEED | CAR INSIDE | LIFT WELL | ENTRANCE | NO OF STOPS/TRAVEL | |||
---|---|---|---|---|---|---|---|---|
Persons | KGS | in.m.p.s | A | B | C | D | E | |
6 | 408 | 0.66 | 1100 | 1000 | 1550 | 1550 | 700 | 8 Stop/21 Meters |
1000 | 1100 | 1550 | 1650 | 700 | ||||
1200 | 900 | 1750 | 1450 | 800 | ||||
8 | 544 | 0.66 | 1400 | 1000 | 1800 | 1550 | 800 | |
1300 | 1100 | 1800 | 1650 | 800 | ||||
1200 | 1200 | 1750 | 1750 | 800 | ||||
10 | 680 | 0.66 | 1400 | 1250 | 1800 | 1800 | 800 | 6 Stop/15 Meters |
1300 | 1350 | 1800 | 1900 | 800 | ||||
13 | 884 | 0.5 | 2000 | 1100 | 2500 | 1750 | 900 | |
16 | 1088 | 0.5 | 2000 | 1300 | 2500 | 1950 | 1000 |
LOAD | SPEED | CAR INSIDE | LIFT WELL | ENTRANCE | NO OF STOPS/TRAVEL | |||
---|---|---|---|---|---|---|---|---|
Persons | KGS | in.m.p.s | A | B | C | D | E | |
6 | 408 | 0.66 | 1100 | 1000 | 1500 | 1650 | 800 | 8 Stop/21 Meters |
1000 | 1100 | 1500 | 1750 | 800 | ||||
1200 | 900 | 1600 | 1550 | 800 | ||||
8 | 544 | 0.66 | 1400 | 1000 | 1800 | 1650 | 800 | |
1300 | 1100 | 1700 | 1750 | 800 | ||||
1200 | 1200 | 1600 | 1850 | 800 | ||||
10 | 680 | 0.66 | 1400 | 1250 | 1800 | 1900 | 800 | 6 Stop/15 Meters |
1300 | 1350 | 1700 | 2000 | 800 | ||||
13 | 884 | 0.5 | 2000 | 1100 | 2500 | 1800 | 1000 | |
16 | 1088 | 0.5 | 2000 | 1300 | 2500 | 2000 | 1000 |
