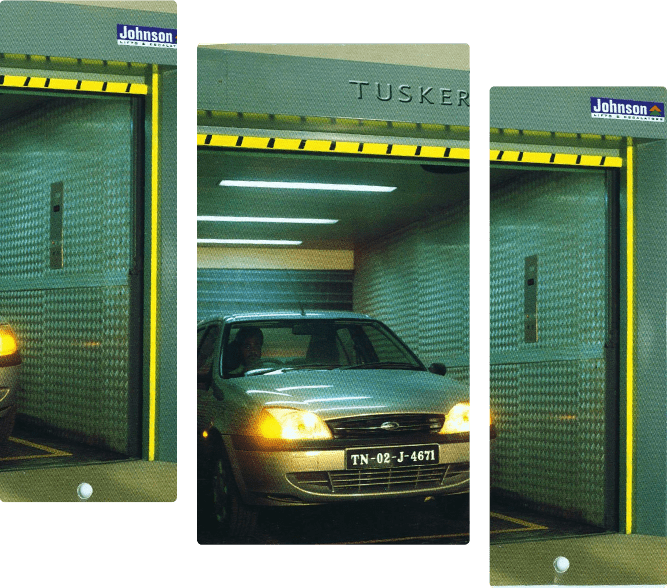

Car Lifts

For Public Places for movement of Automobile

Car lifts are the Best Method to Transfer the Cars / Automobiles Floor to Floor. Vertical Movement of the Cars / Automobiles is required in the Residential and Commercial Projects which are designed with Multiple Levels of Parking or in an Automobile Showroom and Repair Center with Multiple Levels. We also customize our products as per considerations and requirements of our customers. Our automotive lifts are strong, sturdy and have high weight carrying capacity. Our safe and secure car lifts are a must-have addition to the sophisticated buildings of all types. Carrying Capacity of our Car Lifts range from 2500-4000 For More DetailsĀ Contact UsĀ

Get to know special advantages of Goods lifts

Features

Operations

Strong, sturdy and have high weight carrying capacity

Sturdy construction

Carrying Capacity of our Car Lifts range from 2500-4000 kgs

Best to Transfer Cars

Best to use in Multiple Levels of Parking & Repair Center with Multiple Levels

At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Nextra.

Measurements and Dimensions

Specifications
LOAD CAR INSIDE LIFT WELL ENTRANCE
PERSONS KGS A B C D E
6 408 1000 1100 1650 1475 700
8 544 1050 1350 1675 1600 700
1000 1400 1800 1800 800
1300 1100 1885 1500 800
10 680 1200 1450 1900 1775 800
1000 1700 1800 1925 800
13 884 1100 2000 1950 2300 900
1500 1450 2175 1800 900
15 1020 1100 2150 1950 2450 900
1550 1550 2200 1875 900

Measurements and Dimensions

Side Opening Door Lifts
LOAD CAR INSIDE LIFT WELL ENTRANCE
PERSONS KGS A B C D E
6 408 900 1100 1500 1475 700
1000 1100 1575 1475 800
8 544 1050 1350 1650 1600 800
1300 1100 1885 1500 800
10 680 1100 1600 1775 1925 800
1200 1450 1875 1775 800
13 884 1100 2000 1775 2300 900
1200 1450 1875 1775 800
15 1020 1100 2150 1775 2450 900
1550 1550 2200 1875 1000
CAPACITY PIT DEPTH HEAD ROOM SPEED TRAVEL CABIN CLEAR HEIGHT
6P to 10P 1600 4000 1.25mps 45 mtrs 2200
13P & 16P 1700 4200
