Basica
The Nano Of Lifts
Basica are the basic lifts from Johnson considering innovation that creates a lowest price point without any compromise on any safety features or standards. Basica lifts are tailor-made for large-scale affordable housing projects. With Basica, Johnson aims at designing high quality lifts, with the best features possible at a never-before cost. Basica also comes with varied exceptional features including auto-doors, infra-red door safety screen, with attractive interior color schemes. With Basica, you can also opt for an automatic rescue device.
Get to know special advantages of Basica
Features

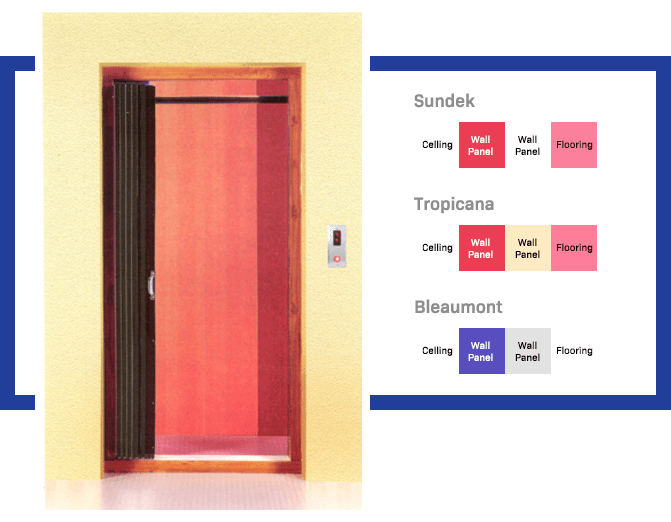

Color Schemes
Comes with three attractive color schemesCar Doors
Available as sliding, collapsible, swing and folding shuttersInteriors
High quality wall panels, with matching shade ceiling & flooringElevation
Lifts with/without diverter wheelsBrochure
Johnson Basica
At Johnson, we manufacture High Speed,
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Basica, download brochure.
Energy Efficient, Green, BMS/RMS Compatible, Aesthetically rich and durable lifts and escalators.
To get to know more about Johnson Basica, download brochure.
Send download link to:
What’s inside in it?
Interiors
What’s more with Basica?
Interiors/Exteriors
JLLP 03 (Optional)
Measurements and Dimensions
Specifications| Basica The Nano In Elevators | ||
|---|---|---|
| Special Feature | Energy saving VVVF controller. | |
| Optional Feature | Automatic Rescue Device during power interruptions.Overload indicator. | |
| Type | Passenger | |
| Speed | 0.66 mtr/sec | 1.00 mtr/sec |
| Number of floors | Low rise(5 floors max.) | Medium rise(10 floors max.) |
| Control | Down collective/Simplex SCL | Full collective |
| Capacity | 6 & 8 Passengers | |
| Drive | Microprocessor-based VVVF | |
| Car / Floor | Pre-coated Steel enclosure / PVC floor | |
| Car Doors | Pre-coated Steel Centre Opening Power-operated doors | |
| Landing Doors | Pre-coated Steel Centre Opening Power-operated doors | |
| Power Supply | AC 400/440 volts, 3 phase, 50 cycles | |
| Other attractive features | Direction & position indicator in car & landings. Emergency light and alarm bell. Provision for intercom. Call register signal and VF door operator. Slim false ceiling with light & fan. Infra red door screen. Stainless steel handrail at rear. |
|
Basica standard car sizes
| Passengers | Lifewell Size mm | Car Size mm | Clear opening mm |
|---|---|---|---|
| 8 | 1750 * 1750 | 1300 * 1100 | 800 * 2000 |
| 6 | 1550 * 1575 | 1100 * 1000 | 700 * 2000 |
| Minimum headroom height : 3800 mm | Minimum lift pit depth : 1250 mm | Machine room height : 2000 mm |
